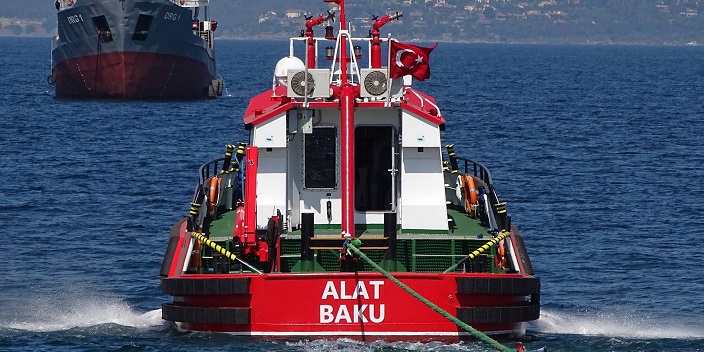

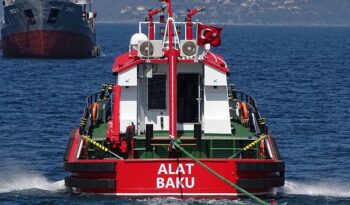

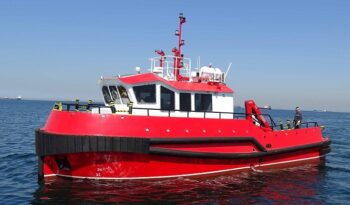

15M CREW BOAT

9,90M MOORING BOAT - LINE HANDLER LOYD OFFERS DIFFERENT TYPE OF MILITARY VESSELS ; PATROL BOAT , RESCUE BOAT, ANTI PIRACY BOAT , RIB , LANDING CRAFT . STANDARD DIMENSIONS FOR MILITARY BOATS; FROM LOA:7 METERS TO LOA:24 METERS. OUR STANDARD EQUIPMENTS; AS MAIN ENGINES MAN , CUMMINS , DOOSAN , CATERPILLAR , YANMAR , IVECO , SCANIA , VOLVO , BAUDOUIN , MITSUBISHI , MERCURY. AS GEAR BOX ; ZF , DONGI , TWINDISC .

15M CREW BOAT

Boat
overview

Loyd offers different type of military vessels ; Patrol boat , Rescue boat, Anti piracy boat , Rib , Landing Craft . Standard dimensions for military boats; from Loa:7 meters to Loa:24 meters. Our standard equipments; As main engines MAN , Cummins , Doosan , Caterpillar , Yanmar , Iveco , Scania , Volvo , Baudouin , Mitsubishi , Mercury. As gear box ; ZF , Dongi , Twindisc .

As propulsion system ; Conventional fixed pitch propeller , Water jet , stern drive , Out board. As auxiliary engine ; Cummins , Perkins . Deck Layout : Anchor , Chain , Anchor windlass , requested military equipment . Nautical & communication equipments ; Search light , Radar , Gps , Echo sounder , Vhf .

Loydshipyard uses Steel ( DH 36 ) , Aluminium ( 5083 H321 ) & HDPE ( High density polyethylene ) materials for Hull and superstructure constructions .Our military boats can be cover with bulletproof materials to keep safety at high level . Loyd shipyard manufactures military boats according to IACS member class rules. Our military boats speed range ; from 12 knots to 60 knots.

Our experienced team remain at your disposal , please do not hesitate to contact us 7/24.

Speed

18,9 Knots

Capacity

10 Pax, 2 Crew

Propulsion Type

Fixed Pitch Propeller

Power

Twin 700 hp

Boat
highlights

9,90M MOORING BOAT - LINE HANDLER LOYD OFFERS DIFFERENT TYPE OF MILITARY VESSELS ; PATROL BOAT , RESCUE BOAT, ANTI PIRACY BOAT , RIB , LANDING CRAFT . STANDARD DIMENSIONS FOR MILITARY BOATS; FROM LOA:7 METERS TO LOA:24 METERS. OUR STANDARD EQUIPMENTS; AS MAIN ENGINES MAN , CUMMINS , DOOSAN , CATERPILLAR , YANMAR , IVECO , SCANIA , VOLVO , BAUDOUIN , MITSUBISHI , MERCURY. AS GEAR BOX ; ZF , DONGI , TWINDISC .
DIMENSIONS
Length OA 14,95 m
Beam OA 5,00 m
Depth at sides 2,65 m
Draught Aft 1,20 m
TANK CAPACITIES
Fuel-Oil 2,64 m3
Fresh Water 0,61 m3
Sawage 0,61 m3
