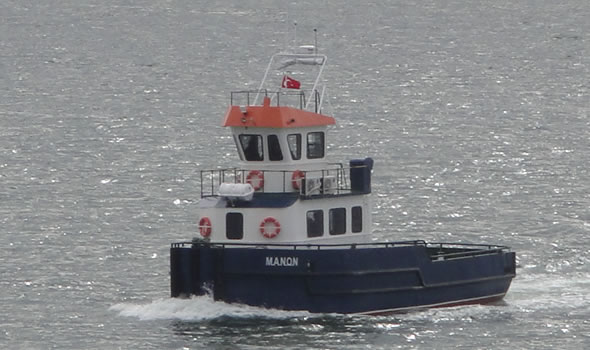

15M TUG BOAT

DIMENSIONS

Length OA: 14.85 m Beam OA: 5.75 m
Depth at sides: 2.30 m Draught Aft: 1.50 m Displacement: 55.24 tons

TANK CAPACITIES

Fuel-Oil: 15.47 m3 Fresh Water: 2.92 m3 Grey Water: 0.66 m3

PERFORMANCES

Bollard Pull: 10 ton Speed: 10.2 Knots

PROPULSION SYSTEM

Main Engines: 2x Caterpillar 3406
Total Power: 656 Kw (896hp) at 2100rpm
Gear Boxes: 2x ZF W350 1:4
Propulsion: 2x Eris Fixed Pitch Propellers 1000mm Diameter

AUXILIARY EQUIPMENT

Main Generator: 130 /400V 27kVA, 50hz Pumps: Bilge/GS/Fire

DECK LAYOUT

Anchor: 2x60kg Pool (High Holding Power) Chain: 70m 12mm
Anchor Windlass: Data Hydraulic 1.5 ton

NAUTICAL AND COMMUNICATION EQUIPMENT

Search Lights: 250W
Compass: Standart
VHF: Raymarine Ray55
GPS: Raymarine C80 Echosounder: Raymarine D50 3D Radar: Raymarine 24nm
