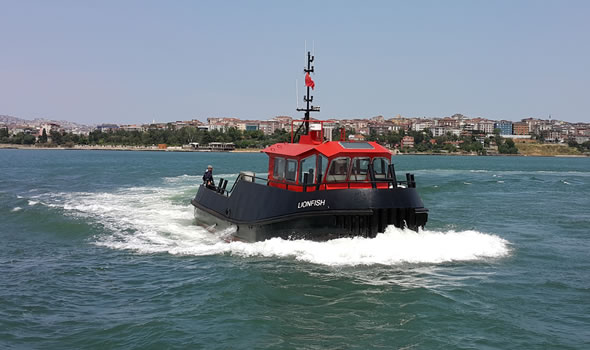

15M TUG BOAT

DIMENSIONS

Length OA: 15.00 m Beam OA: 5.80 m
Depth at sides: 2.40 m Draught Aft: 1.60 m Displacement: 65.00 tons

TANK CAPACITIES

Fuel-Oil: 11.52 m3 Fresh Water: 2.15 m3 Grey Water: 1.60 m3

PERFORMANCES

Bollard Pull: 16.50 ton Speed: 12 Knots

PROPULSION SYSTEM

Main Engines: 2x DOOSAN V222TIH
Total Power: 1440 HP @ 1800 rpm
Gear Boxes: DONGI – DMT280HL 1/4
Propulsion: 2x Fixed Pitch Propellers 1300mm in Nozzle Bowthruster: Optional

AUXILIARY EQUIPMENT

Main Generator: 19 kVA Pumps: Bilge/GS/Fire

DECK LAYOUT

Anchor: 1x50kg (Very Hih Holding Power) Chain: 100m 12mm
Anchor Windlass: Data Hydraulic 1.1 ton Towing Hook: 17Mton-Quick Release Hook

NAUTICAL AND COMMUNICATION EQUIPMENT

Search Lights: 250W
Compass: SC-50
VHF: FM4721 VHF / F9 1575 MF/ HFSSB GPS: GP_33 AutoPilot: Nav Pilot 700 Echosounder: FCV-587
Radar: NAVNET VX2

REMARKS

NOTATION COASTAL AREA TUG BOAT
