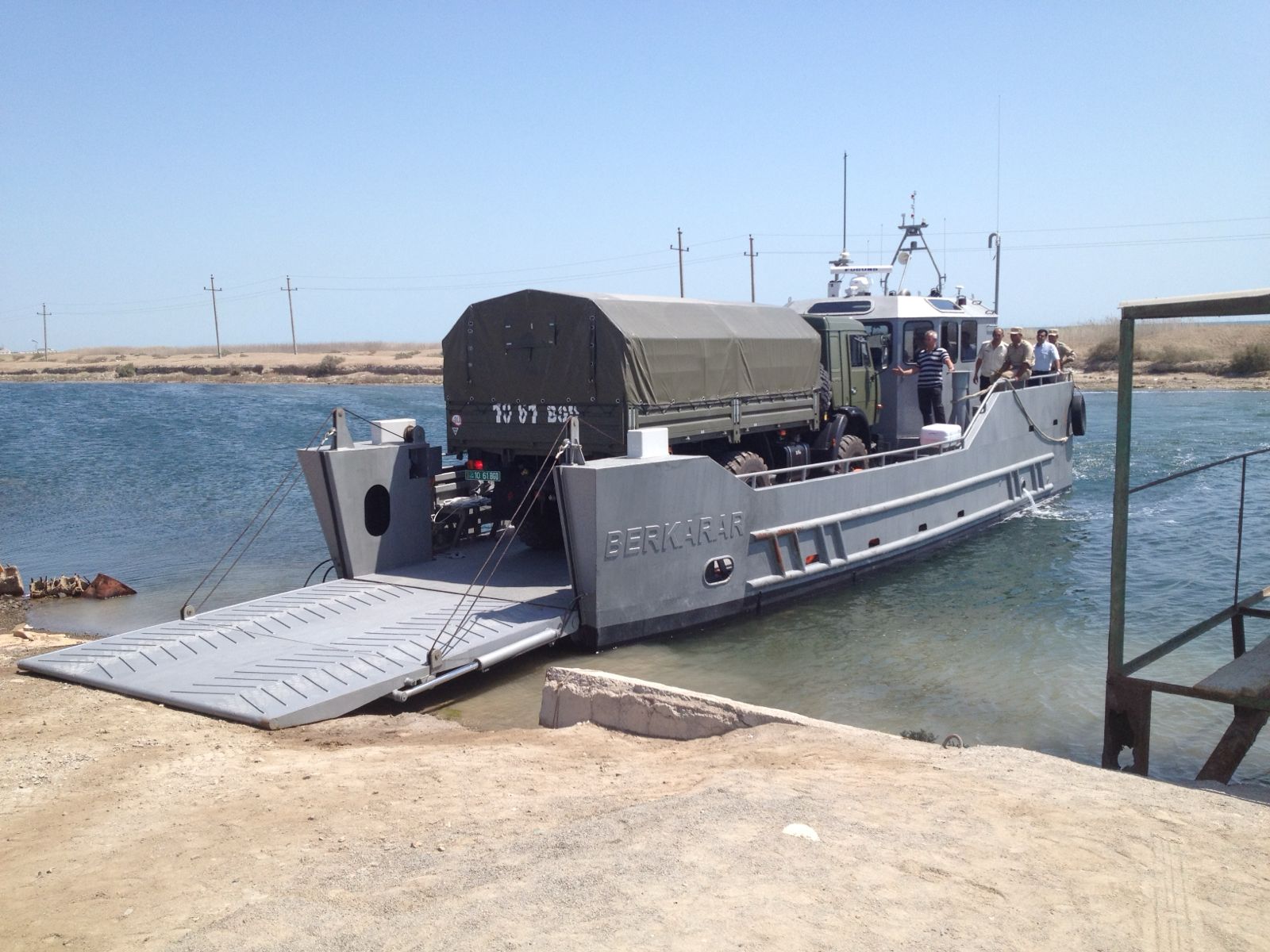

15M LANDING CRAFT
DIMENSIONS
Length OA: 14.90 m Beam OA: 5.5 m
Depth at sides: 1.5 m Draught Aft: 1.10 m Displacement: 58.50 tons
TANK CAPACITIES
Fuel-Oil: 11.20 m3 Fresh Water: 0.72 m3 Grey Water: 0.78 m3
PERFORMANCES
Bollard Pull: N/A ton Speed: 12.0 Knots
PROPULSION SYSTEM
Main Engines: 2x Cummins QSM11
Total Power: 1220hp @ 2300 rpm
Gear Boxes: 2x Twindisc 5110
Propulsion: 2x Eris Fixed Pitch Propellers 850mm Diameter
AUXILIARY EQUIPMENT
Main Generator: Cummins Onan 17.5 kVA, 50 Hz Pumps: Bilge/GS/Fire
DECK LAYOUT
Anchor: 60kg Pool (High Holding Power) Chain: 70m 12mm
Anchor Windlass: Data Hydraulic
NAUTICAL AND COMMUNICATION EQUIPMENT
Search Lights: 250W
VHF: Raymarine Ray55
GPS: Raymarine C90w Echosounder: Raymarine D50 3D Radar: Raymarine 48nm
It is the general arangement of previously produced boats, it can be changed according to your wishes.
The power and propulsion system is the lifeblood of any vessel. Selecting the right engine is a crucial decision that directly impacts a boat’s performance, efficiency, and operational life.
As a shipyard, we understand this better than anyone. We don’t limit you to a single brand. Our expertise allows us to collaborate with all major global engine manufacturers, ensuring we match your vessel with the ideal power plant for its specific mission and operational needs. We provide expert guidance on everything from power output to fuel efficiency, guaranteeing your boat is built for optimal performance from day one.
Caterpillar
Cummins
Volvo Penta
MAN
MTU (Rolls-Royce Power Systems)
Yanmar
Do not leave this critical choice to chance. Contact us today to discuss your project and receive professional guidance on your power system.
