17 m

JAZAN 16

Vessel Type

Hull Material

Steel

Product ID

LOYD 241

Built for harbour towing and berthing assistance operations in the port of Jazan, Saudi Arabia, this 17-metre steel tugboat delivers a sustained bollard pull of 20 tonnes — making it a capable primary harbour tug for handling large commercial vessels in the demanding conditions of Red Sea port approaches. The wide 7.70-metre beam and 2.25-metre operating draft provide the stability and shallow-water capability essential for close-quarters manoeuvring in berth-restricted harbour environments. Twin CAT C18 main engines, each producing 873 hp at 2,200 rpm for a combined output of 1,746 hp, drive the vessel through Masson MM W3700 gearboxes and fixed-pitch nozzle propellers — a propulsion configuration specifically selected to maximise static thrust and low-speed bollard pull performance. A Sole Diesel 17.5 kW generator ensures reliable auxiliary power for continuous port operations, while the comprehensive pump system covering bilge, sewage, fresh water, ballast and hydraulics supports self-sufficient extended deployment. Bureau Veritas classification confirms the vessel meets the structural and operational standards required for professional commercial harbour towage in international ports.

Key Figures

Project ID

LOYD 241

Vessel Type

Tugboat

Year

2021

Country

Saudi Arabia

Dimensions

Length O.A.

17 m

Beam O.A.

7.7 m

Depth at Sides

3.1 m

Draft

2.25 m

Machinery

Max Speed

11 knot

Cruise Speed

11 knot

Main Engines

2 × CAT C18

Total Power

873 hp

Drive

Masson MM W3700

Propulsion

FPP in Nozzles

Aux. Engine

Sole Diesel 17.5 kW

Capacity

Fuel Oil Capacity

16 m³

Fresh Water Capacity

5 m³

Sewage Capacity

1.6 m³

Complement

-

AC

Low Maintenance Split Type

Class

Bureau Veritas

JAZAN 16

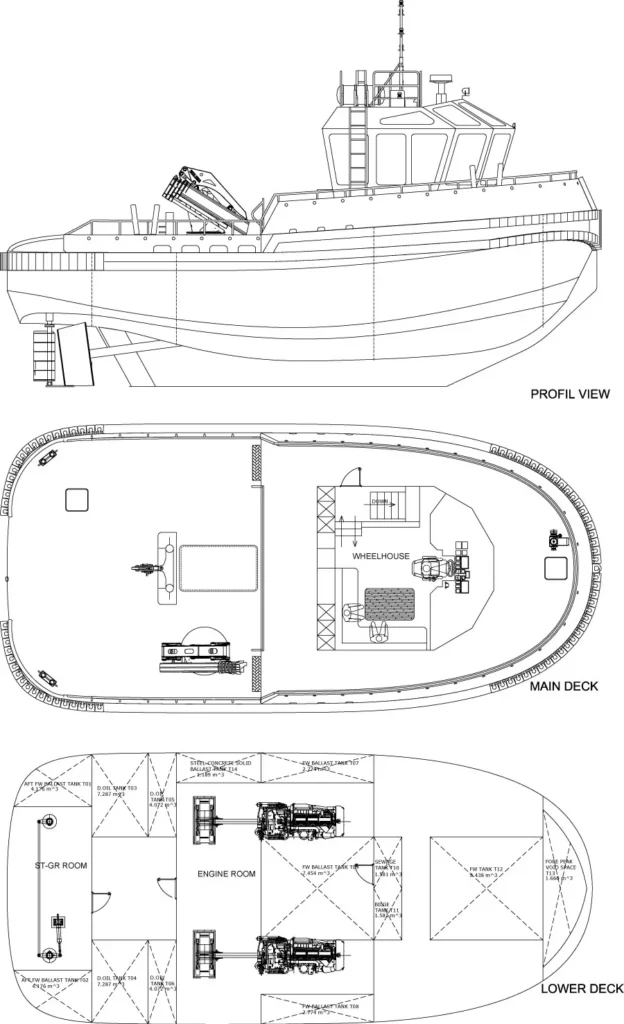

General Arangement

It is the general arangement of previously produced boats, it can be changed according to your wishes.

Optional power and propulsion system

The power and propulsion system is the lifeblood of any vessel. Selecting the right engine is a crucial decision that directly impacts a boat’s performance, efficiency, and operational life.

As a shipyard, we understand this better than anyone. We don’t limit you to a single brand. Our expertise allows us to collaborate with all major global engine manufacturers, ensuring we match your vessel with the ideal power plant for its specific mission and operational needs. We provide expert guidance on everything from power output to fuel efficiency, guaranteeing your boat is built for optimal performance from day one.


Our Engine Partners

  • Caterpillar

  • Cummins

  • Volvo Penta

  • MAN

  • MTU (Rolls-Royce Power Systems)

  • Yanmar

Do not leave this critical choice to chance. Contact us today to discuss your project and receive professional guidance on your power system.
