15.00 m

Loyd Shipyard Delivers 1500 series Pilot Boat for APM Terminals

Vessel Type

Hull Material

Alumınum

Product ID

LOYD 268

Commissioned for pilot boarding and port approach operations along the West African coast, this 15-metre full-aluminum vessel is built to handle the demanding sea conditions of the Atlantic seaboard while maintaining the manoeuvrability required for close-quarters harbour work. The 5083-series aluminum hull delivers a favourable strength-to-weight ratio with a shallow operational draft of 0.50 metres, enabling reliable service across a range of port depths and tidal conditions. Twin Cummins QSL9 main engines, each rated at 450 hp at 2,100 rpm, drive the vessel through fixed-pitch propellers to a top speed of 25 knots, ensuring fast turnaround between ship-to-shore transfers. With 2,600 litres of fuel capacity and a climate-controlled interior fitted with a low-maintenance split air conditioning system, the vessel is engineered for sustained daily deployment in tropical conditions. The layout comfortably accommodates 8 pax and 2 crew, with the embarkation deck and pilot boarding arrangements optimised for safe transfer operations in Atlantic swell.

Key Figures

Project ID

LOYD 268

Vessel Type

Pilot Boat

Year

2025

Country

Liberia

Dimensions

Length O.A.

15.00 m

Beam O.A.

3.80 m

Depth at Sides

1.90 m

Draft

0.70 m

Machinery

Max Speed

23 knot

Cruise Speed

20 knot

Main Engines

2 × Cummins QSL9

Total Power

900 hp

Drive

2 × ZF 325-1A

Propulsion

Fixed Pitch Propellers

Aux. Engine

10 kW Single Phase

Capacity

Fuel Oil Capacity

2.6 m³

Fresh Water Capacity

0.5 m³

Sewage Capacity

0.4 m³

Complement

8 Pax 2 Crew

AC

Low Maintenance Split Type

Class

Bureau Veritas (optional)

LIBERTY

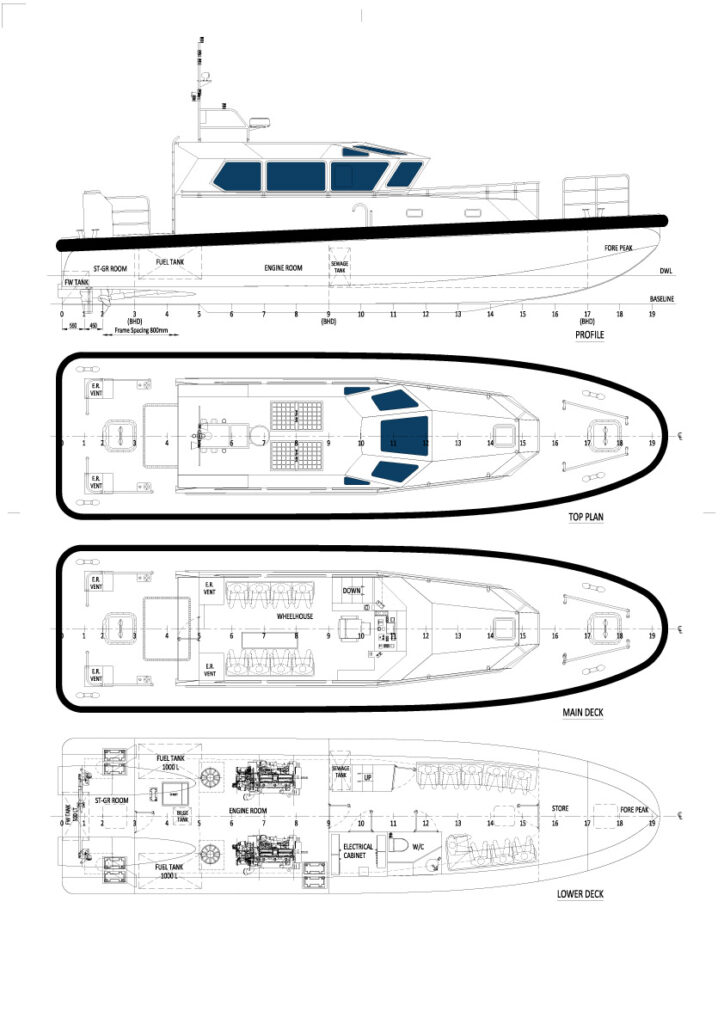

General Arangement

It is the general arangement of previously produced boats, it can be changed according to your wishes.

Optional power and propulsion system

The power and propulsion system is the lifeblood of any vessel. Selecting the right engine is a crucial decision that directly impacts a boat’s performance, efficiency, and operational life.

As a shipyard, we understand this better than anyone. We don’t limit you to a single brand. Our expertise allows us to collaborate with all major global engine manufacturers, ensuring we match your vessel with the ideal power plant for its specific mission and operational needs. We provide expert guidance on everything from power output to fuel efficiency, guaranteeing your boat is built for optimal performance from day one.


Our Engine Partners

  • Caterpillar

  • Cummins

  • Volvo Penta

  • MAN

  • MTU (Rolls-Royce Power Systems)

  • Yanmar

Do not leave this critical choice to chance. Contact us today to discuss your project and receive professional guidance on your power system.
