14 m

ALQAYID 1

Vessel Type

Hull Material

Hdpe

Product ID

LOYD 024

Delivered to a Libyan operator for coastal patrol and pilot boarding duties, this 14-metre HDPE vessel brings the structural and maintenance advantages of high-density polyethylene construction to professional maritime law enforcement operations on the Mediterranean coast. The monolithic HDPE hull eliminates corrosion entirely, requires no anti-fouling paint, and absorbs impact energy far more effectively than steel or aluminum alternatives — critical advantages for a vessel operating in demanding coastal patrol conditions with limited maintenance infrastructure. Twin Iveco FPT main engines, each producing 370 hp at 3,000 rpm through conventional fixed-pitch propellers via TM1200 gearboxes, drive the vessel to a top speed of 25 knots — providing the rapid intercept capability required for effective coastal patrol coverage. The Sole Diesel generator ensures a reliable electrical supply for the full Raymarine navigation suite including VHF, GPS, echosounder and radar. With accommodation for 6 passengers, 2 berths and dedicated WC and cabin spaces, the vessel is equipped for extended patrol missions beyond day-trip range.

Key Figures

Project ID

LOYD 024

Vessel Type

Patrol Boat

Year

2021

Country

Libya

Dimensions

Length O.A.

14 m

Beam O.A.

3.8 m

Depth at Sides

1.6 m

Draft

0.7 m

Machinery

Max Speed

25 knot

Cruise Speed

22 knot

Main Engines

2 × Iveco FPT

Total Power

740 hp

Drive

2 × TM1200 A — Ratio 2.00

Propulsion

Fixed Pitch Propellers

Aux. Engine

Sole Diesel 4 GSCH

Capacity

Fuel Oil Capacity

2 m³

Fresh Water Capacity

0.4 m³

Sewage Capacity

0.25 m³

Complement

6 Pax + 2 Berths

AC

-

Class

-

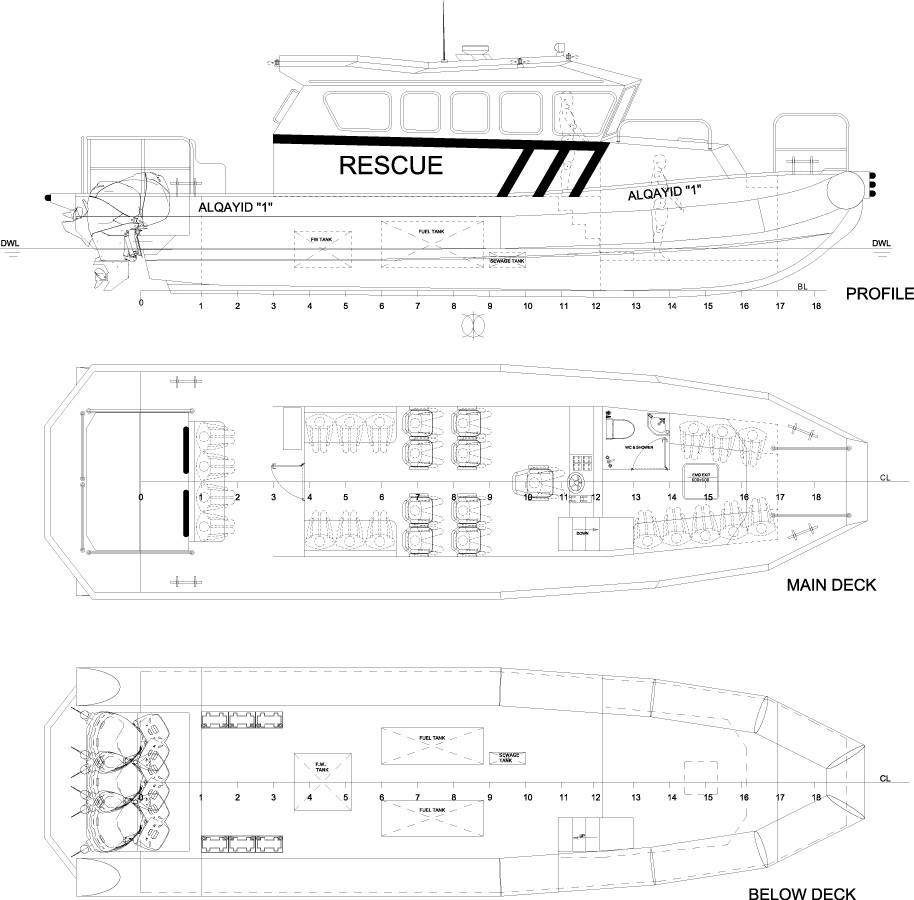

alqayid1 ga

General Arangement

It is the general arangement of previously produced boats, it can be changed according to your wishes.

Optional power and propulsion system

The power and propulsion system is the lifeblood of any vessel. Selecting the right engine is a crucial decision that directly impacts a boat’s performance, efficiency, and operational life.

As a shipyard, we understand this better than anyone. We don’t limit you to a single brand. Our expertise allows us to collaborate with all major global engine manufacturers, ensuring we match your vessel with the ideal power plant for its specific mission and operational needs. We provide expert guidance on everything from power output to fuel efficiency, guaranteeing your boat is built for optimal performance from day one.


Our Engine Partners

  • Caterpillar

  • Cummins

  • Volvo Penta

  • MAN

  • MTU (Rolls-Royce Power Systems)

  • Yanmar

Do not leave this critical choice to chance. Contact us today to discuss your project and receive professional guidance on your power system.
