11.50 m

SVITZER MOIN

Vessel Type

Hull Material

Alumınum

Product ID

LOYD 300

Delivered to a Danish pilot station operator, this 11.5-metre full-aluminum vessel is engineered for fast, reliable pilot boarding and disembarkation duties in the demanding conditions of Northern European waters. Built on LOYD Shipyard’s PT 1200ST platform, the 5083-series aluminum hull and wheelhouse combination delivers exceptional rigidity at low displacement, while the twin waterjet propulsion system eliminates the vulnerability of exposed shafts and propellers during close-quarters approach manoeuvres alongside deep-draft vessels. Twin Cummins QSB 6.7 main engines, each producing 480 hp at 3,300 rpm via Namjet Tractor waterjet units, accelerate the vessel to a top speed of 45 knots — enabling rapid response to vessel arrival schedules in all but the most severe sea states. A cruise speed of 30 knots ensures efficient coverage across extended pilot boarding grounds while maintaining comfort for the pilot crew. With a draft of just 0.50 metres and instant thrust response from the waterjet system, the vessel handles the precise positioning demands of pilot transfer operations with confidence in harbour approaches, open roadsteads and confined fairways alike.

Key Figures

Project ID

LOYD 300

Vessel Type

Pilot Boat

Year

2022

Country

Denmark

Dimensions

Length O.A.

11.50 m

Beam O.A.

3.30 m

Depth at Sides

Draft

0.50 m

Machinery

Max Speed

45 knot

Cruise Speed

30 knot

Main Engines

2 × Cummins QSB 6.7

Total Power

960 hp

Drive

-

Propulsion

Waterjet

Aux. Engine

7 kW Single Phase

Capacity

Fuel Oil Capacity

-

Fresh Water Capacity

0.10 m³

Sewage Capacity

0.10 m³

Complement

6 Pax - 2 Crew

AC

-

Class

Bureau Veritas (optional)

SVITZER MOIN

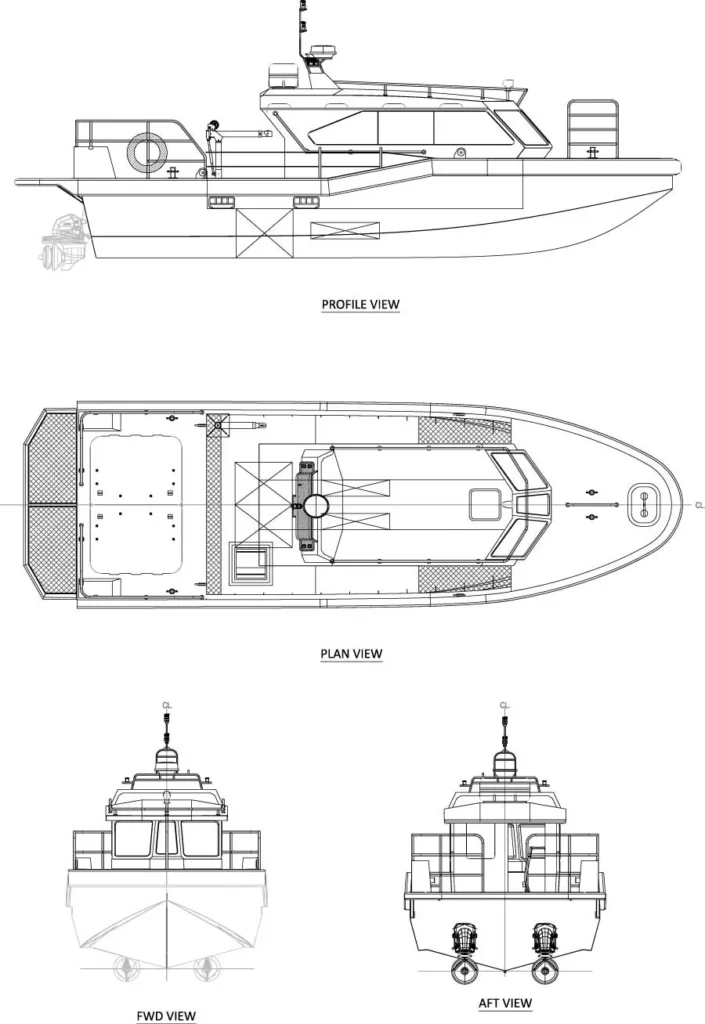

General Arangement

It is the general arangement of previously produced boats, it can be changed according to your wishes.

Optional power and propulsion system

The power and propulsion system is the lifeblood of any vessel. Selecting the right engine is a crucial decision that directly impacts a boat’s performance, efficiency, and operational life.

As a shipyard, we understand this better than anyone. We don’t limit you to a single brand. Our expertise allows us to collaborate with all major global engine manufacturers, ensuring we match your vessel with the ideal power plant for its specific mission and operational needs. We provide expert guidance on everything from power output to fuel efficiency, guaranteeing your boat is built for optimal performance from day one.


Our Engine Partners

  • Caterpillar

  • Cummins

  • Volvo Penta

  • MAN

  • MTU (Rolls-Royce Power Systems)

  • Yanmar

Do not leave this critical choice to chance. Contact us today to discuss your project and receive professional guidance on your power system.
