9.9 m

MARIN 10

Vessel Type

Hull Material

Steel

Product ID

LOYD 285

Delivered for mooring and line-handling duties in Turkish port waters, this compact 9.9-metre steel mooring boat is built for the demanding daily work of berthing assistance and line deployment alongside commercial vessels. The A-Grade steel hull with a beam of 4.20 metres provides a stable working platform across the full range of port operating conditions, while the wide fender-protected deck layout gives line handlers the space and footing required for safe, efficient mooring operations. A single Cummins QSL9 main engine delivering 450 hp at 2,100 rpm via Twindisc/ZF gearbox and 900mm fixed-pitch nozzle propeller provides the concentrated thrust needed for precise, responsive positioning — achieving a sustained bollard pull of up to 3 tonnes at a working speed of 8 to 10 knots. The low-maintenance split-type air conditioning system and compact operational footprint make this vessel well-suited to sustained daily deployment with minimal downtime. With a fuel capacity of 1,000 litres and a draft of just 1.00 metre, the vessel operates efficiently across the shallow berths and confined dock areas typical of Turkish commercial port infrastructure.

Key Figures

Project ID

LOYD 285

Vessel Type

Mooring Boat

Year

-

Country

-

Dimensions

Length O.A.

9.9 m

Beam O.A.

4.2 m

Depth at Sides

1.7 m

Draft

1 m

Machinery

Max Speed

10 knot

Cruise Speed

-

Main Engines

1 × Cummins QSL9

Total Power

450 hp

Drive

Twindisc / ZF

Propulsion

Fixed Pitch Propellers

Aux. Engine

-

Capacity

Fuel Oil Capacity

1 m³

Fresh Water Capacity

-

Sewage Capacity

-

Complement

-

AC

-

Class

-

MARIN 10

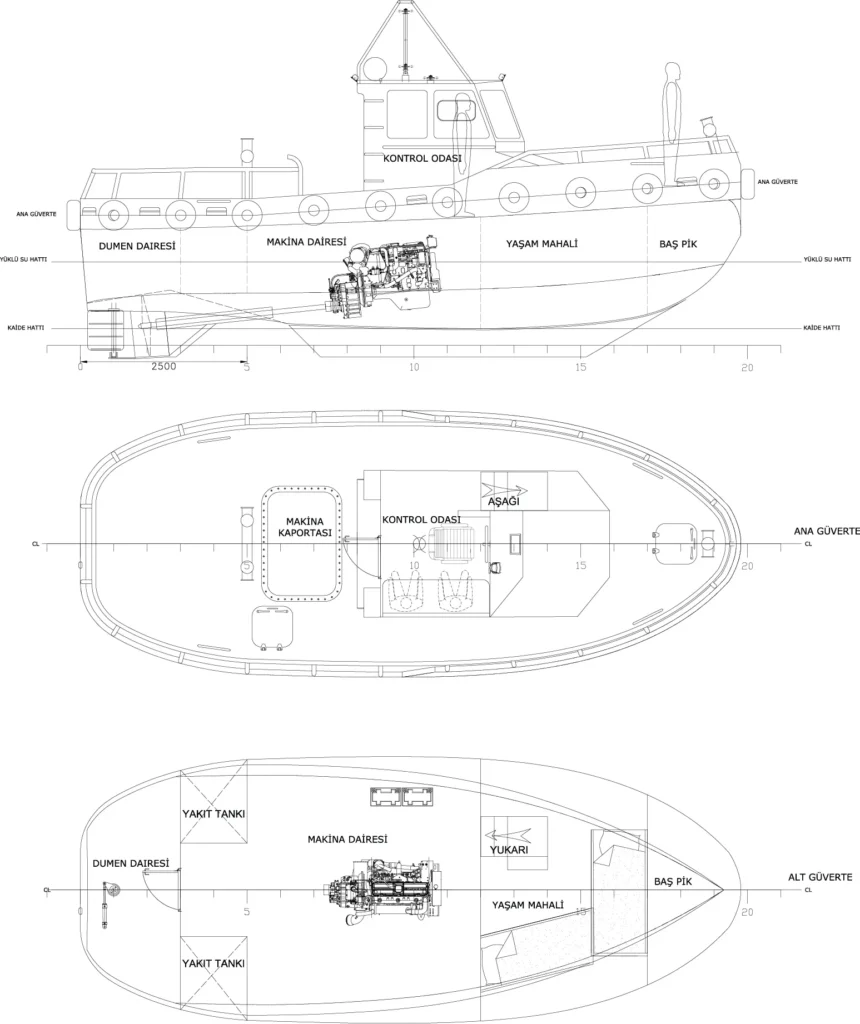

General Arangement

It is the general arangement of previously produced boats, it can be changed according to your wishes.

Optional power and propulsion system

The power and propulsion system is the lifeblood of any vessel. Selecting the right engine is a crucial decision that directly impacts a boat’s performance, efficiency, and operational life.

As a shipyard, we understand this better than anyone. We don’t limit you to a single brand. Our expertise allows us to collaborate with all major global engine manufacturers, ensuring we match your vessel with the ideal power plant for its specific mission and operational needs. We provide expert guidance on everything from power output to fuel efficiency, guaranteeing your boat is built for optimal performance from day one.


Our Engine Partners

  • Caterpillar

  • Cummins

  • Volvo Penta

  • MAN

  • MTU (Rolls-Royce Power Systems)

  • Yanmar

Do not leave this critical choice to chance. Contact us today to discuss your project and receive professional guidance on your power system.
