24M CREW BOAT

9,90M MOORING BOAT - LINE HANDLER LOYD OFFERS DIFFERENT TYPE OF MILITARY VESSELS ; PATROL BOAT , RESCUE BOAT, ANTI PIRACY BOAT , RIB , LANDING CRAFT . STANDARD DIMENSIONS FOR MILITARY BOATS; FROM LOA:7 METERS TO LOA:24 METERS. OUR STANDARD EQUIPMENTS; AS MAIN ENGINES MAN , CUMMINS , DOOSAN , CATERPILLAR , YANMAR , IVECO , SCANIA , VOLVO , BAUDOUIN , MITSUBISHI , MERCURY. AS GEAR BOX ; ZF , DONGI , TWINDISC .

24M CREW BOAT

Boat
overview

Loyd offers different type of military vessels ; Patrol boat , Rescue boat, Anti piracy boat , Rib , Landing Craft . Standard dimensions for military boats; from Loa:7 meters to Loa:24 meters. Our standard equipments; As main engines MAN , Cummins , Doosan , Caterpillar , Yanmar , Iveco , Scania , Volvo , Baudouin , Mitsubishi , Mercury. As gear box ; ZF , Dongi , Twindisc .

As propulsion system ; Conventional fixed pitch propeller , Water jet , stern drive , Out board. As auxiliary engine ; Cummins , Perkins . Deck Layout : Anchor , Chain , Anchor windlass , requested military equipment . Nautical & communication equipments ; Search light , Radar , Gps , Echo sounder , Vhf .

Loydshipyard uses Steel ( DH 36 ) , Aluminium ( 5083 H321 ) & HDPE ( High density polyethylene ) materials for Hull and superstructure constructions .Our military boats can be cover with bulletproof materials to keep safety at high level . Loyd shipyard manufactures military boats according to IACS member class rules. Our military boats speed range ; from 12 knots to 60 knots.

Our experienced team remain at your disposal , please do not hesitate to contact us 7/24.

Type of workboat

Hull Material

Speed

Power

Boat
highlights

9,90M MOORING BOAT - LINE HANDLER LOYD OFFERS DIFFERENT TYPE OF MILITARY VESSELS ; PATROL BOAT , RESCUE BOAT, ANTI PIRACY BOAT , RIB , LANDING CRAFT . STANDARD DIMENSIONS FOR MILITARY BOATS; FROM LOA:7 METERS TO LOA:24 METERS. OUR STANDARD EQUIPMENTS; AS MAIN ENGINES MAN , CUMMINS , DOOSAN , CATERPILLAR , YANMAR , IVECO , SCANIA , VOLVO , BAUDOUIN , MITSUBISHI , MERCURY. AS GEAR BOX ; ZF , DONGI , TWINDISC .
Basic Information CLASSIFICATION
BV (Bureau Veritas)
Length OA 23.90 m
Beam OA 7,98 m
Depth at sides 3,57 m
Draught Aft 2,30 m
Displacement 150 tons
Speed 19-20 knots
C163

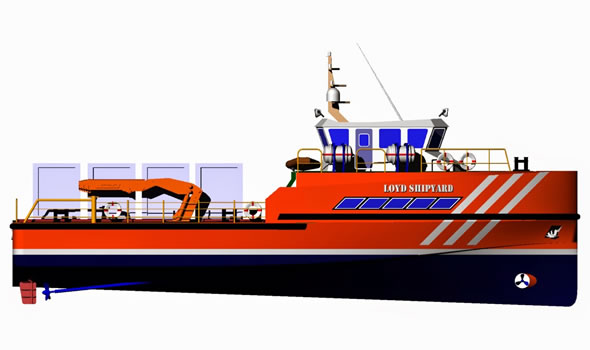

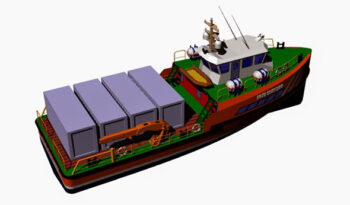

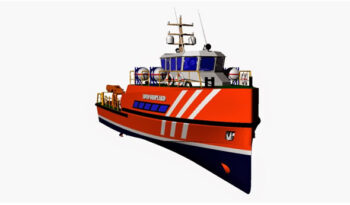

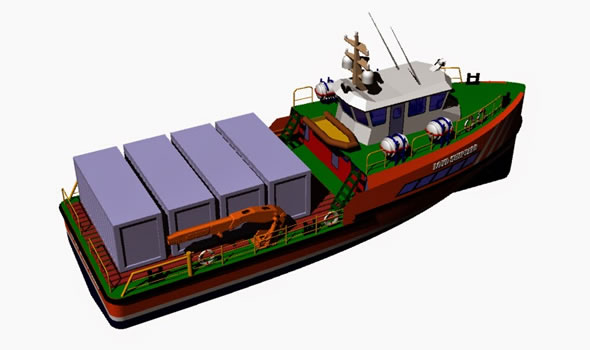

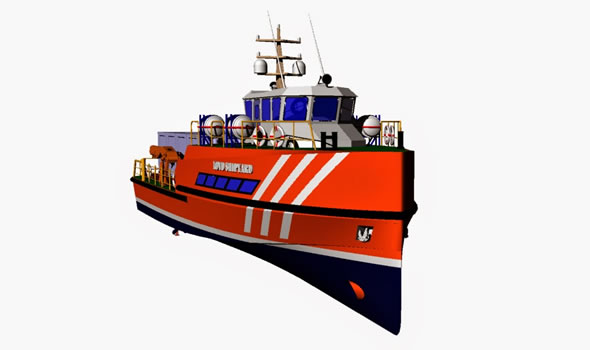

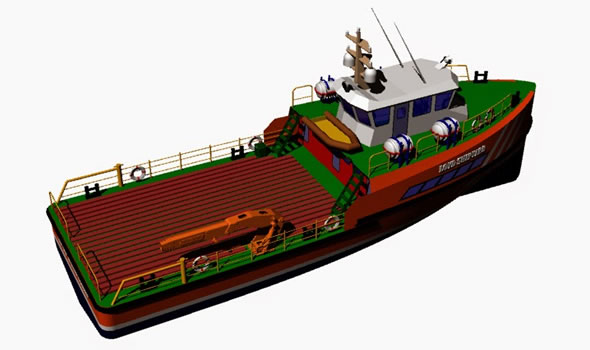

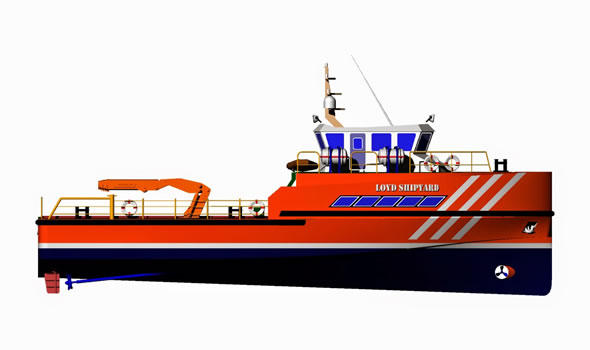

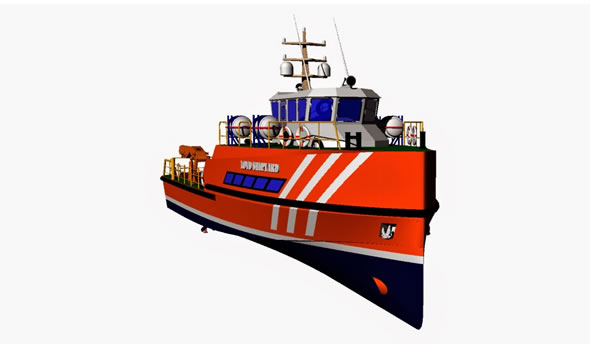

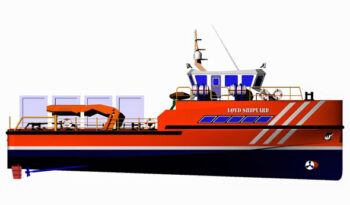

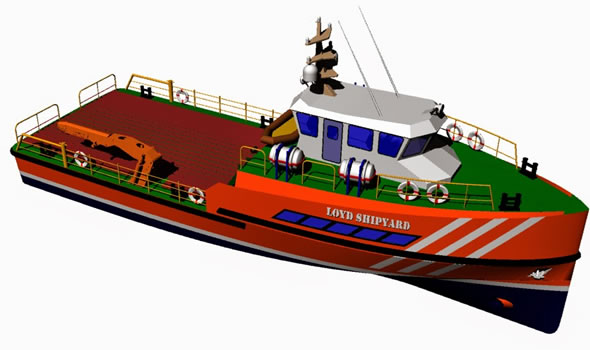

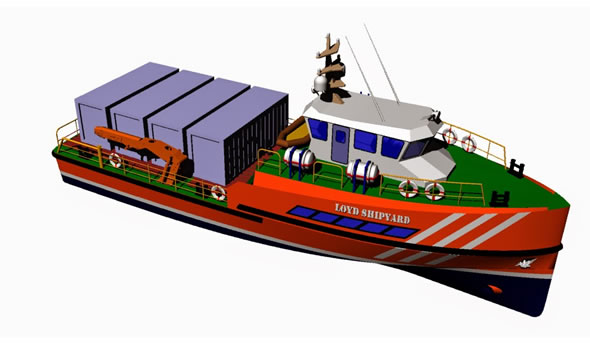

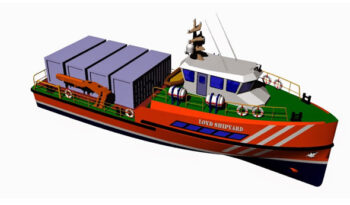

24M CREW BOAT
CLASSIFICATION
BV (Bureau Veritas)
DIMENSIONS
Length OA  23.90 m
Beam OA  7.98 m
Depth at sides  3.57 m
Draught Aft  (Loaded) 2.30 m
Displacement  (Loaded) 150 tons
TANK CAPACITIES
Fuel-Oil  50 m3
Fresh Water  20 m3
Bilge Water  1.7 m3
Grey Water  5 m3
PERFORMANCES
Speed  19-20 knots
PROPULSION SYSTEM
Main Engines  2X MTU – 16V2000M84
Total Power  2x 1650kW @ 2450rpm
Gear Boxes  ZF – 4540A Ratio:  3.04 to 1
Propulsion  Conventional FPP
Bowthruster  Hydraulic 1 x 70hp
AUXILIARY EQUIPMENT
Main Generator  2x Caterpillar 50kVA
Pumps  Bilge/GS/Fire
DECK LAYOUT
Anchor  120kg
Chain  12mm 200mt
Anchor Windlass  Hydraulic
Towing Hook  Optional
NAUTICAL AND COMMUNICATION EQUIPMENT
Search Lights  YES
Compass  YES
VHF  YES
GPS  YES
Echosounder  YES
Radar  2x Raymarine 9-Ghz
Deck Crane Technical Data
Deck Crane Type  Hydraulic Knuckle Boom Telescopic
Max Lifting Capacity  25 tm tm
Max Hydraulic Outreach  10mt m
Sleewing Angle  Unlimited Rotary Table degree
