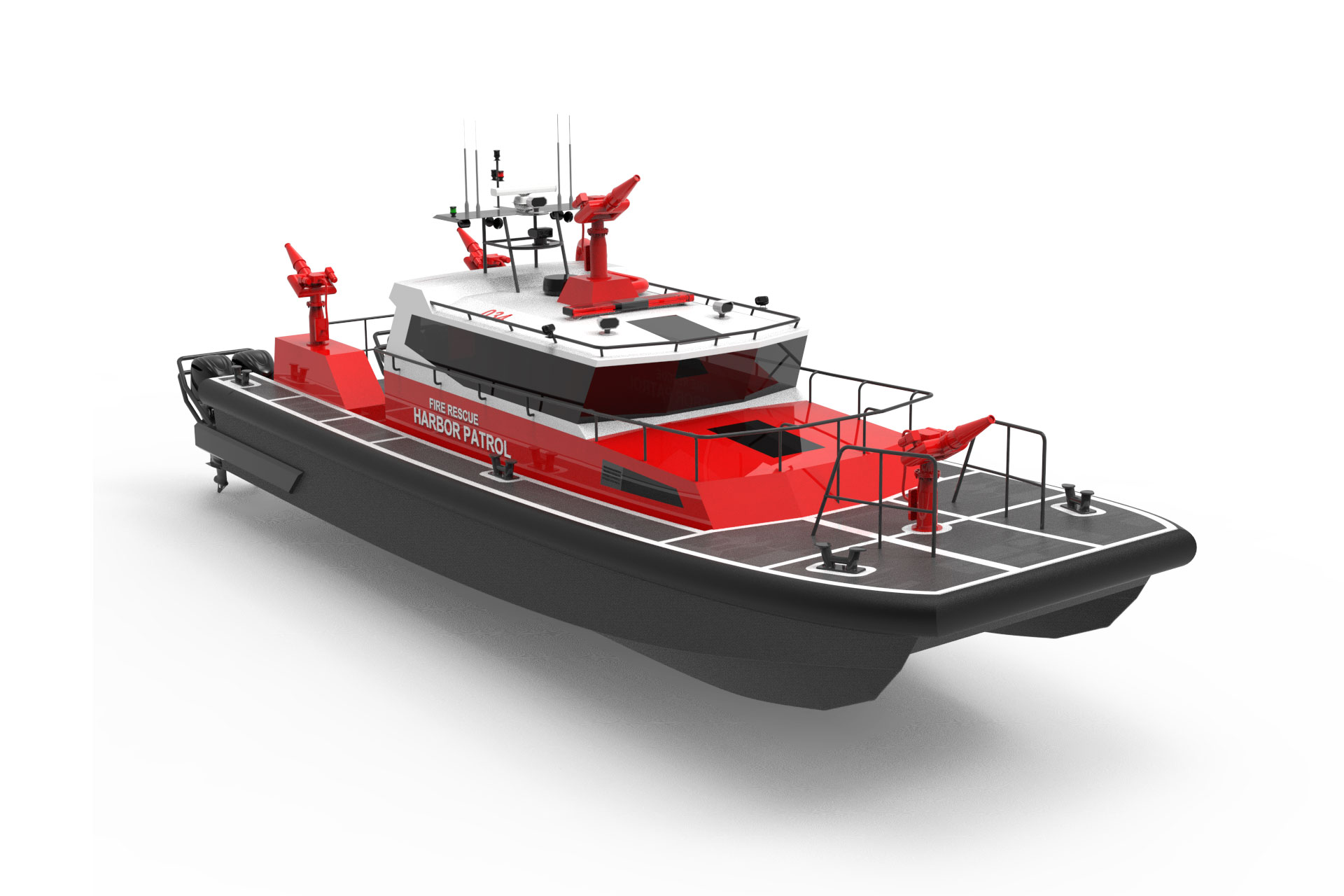

15M FIRE AND RESCUE BOAT

DIMENSIONS
Length OA: 15.90 m
Beam OA: 5.00 m
Depth at sides: 1.80 m
Draught Aft: 0.60 m
Displacement: 12 tons

TANK CAPACITIES
Fuel-Oil: 2.00 m3
Fresh Water: 0.40 m3
Grey Water: 0.20 m3

PERFORMANCES
Speed: 32 Knots

PROPULSION SYSTEM OPTION1
Main Engines: 4x 300HP OXE
Total Power: 1200ho

PROPULSION SYSTEM OPTION2
Main Engines: 2x Cummins QSC6.7 / 24knots
Total Power: 2x 525HP
Propulsion: 2x DOEN WaterJet

AUXILIARY EQUIPMENT
Main Generator: 1x 8kw Cummins Onan
Pumps: Bilge/GS/Fire/Air Condition

DECK LAYOUT
Anchor: 1×37 kg

NAUTICAL AND COMMUNICATION EQUIPMENT
Search Lights: 1xRemote/Forward
Magnetic Compass: Standart
VHF: Simrad
GPS: Simrad
Echosounder: Simrad
Radar: Simrad
Chart Plotter : Simrad

REMARKS
Sea Conditions

Steering
Steering System Cylinder : Marcon
SteeringSystem-Pump : SEA STAR – HH5272-3
