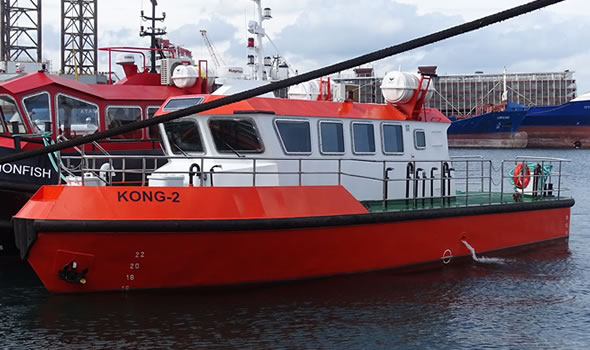

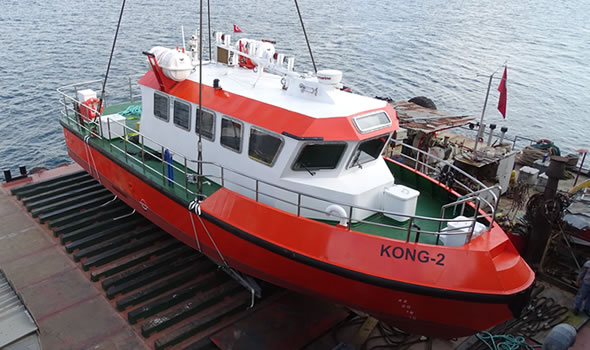

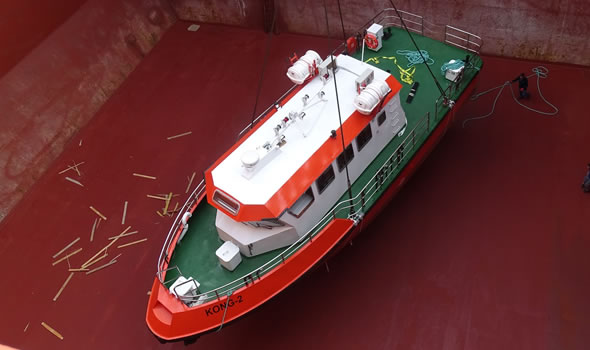

15M CREW BOAT
CLASSIFICATION
BV (Bureau Veritas) – Coastal Area + Hull, dot mach.
DIMENSIONS
Length OA: 14.95 m Beam OA: 5.00 m Depth at sides: 2.650 m Draught Aft: 1.20 m Displacement: 30 tons
TANK CAPACITIES
Fuel-Oil: 2.64 m3 Fresh Water: 0.61 m3 Bilge Water: 0.61 m3 Grey Water: 0.25 m3
PERFORMANCES
Speed: 18 Knots
PROPULSION SYSTEM
Main Engines: 2x VOLVO PENTA D13 MH
Total Power: 2x 441 KW/ 600 HP @1900 RPM
Gear Boxes: 2x ZF500 1-A RATIO 1.964/1
Propulsion: 2x Fixed Pitch Propellers 840mm Diameter
AUXILIARY EQUIPMENT
Main Generator: CUMMINS 22kVA THREE PHASE 50HZ Pumps: FIRE&GS&BILGE
DECK LAYOUT
Anchor: 50kg VHHP
Chain: 80mt 10mm
Anchor Windlass: DATA DZC 1001 H
NAUTICAL AND COMMUNICATION EQUIPMENT
Search Lights: 1X 150W REMOTE CONTROL Compass: 1x
VHF: Raymarine Ray49E
GPS: Raymarine RS130
Echosounder: Raymarine P319 Radar: Raymarine RD418D
It is the general arangement of previously produced boats, it can be changed according to your wishes.
The power and propulsion system is the lifeblood of any vessel. Selecting the right engine is a crucial decision that directly impacts a boat’s performance, efficiency, and operational life.
As a shipyard, we understand this better than anyone. We don’t limit you to a single brand. Our expertise allows us to collaborate with all major global engine manufacturers, ensuring we match your vessel with the ideal power plant for its specific mission and operational needs. We provide expert guidance on everything from power output to fuel efficiency, guaranteeing your boat is built for optimal performance from day one.
Caterpillar
Cummins
Volvo Penta
MAN
MTU (Rolls-Royce Power Systems)
Yanmar
Do not leave this critical choice to chance. Contact us today to discuss your project and receive professional guidance on your power system.
