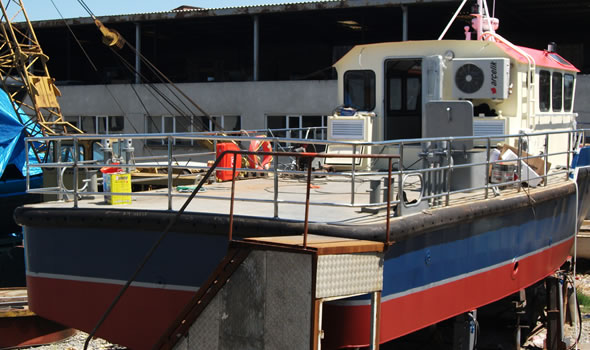

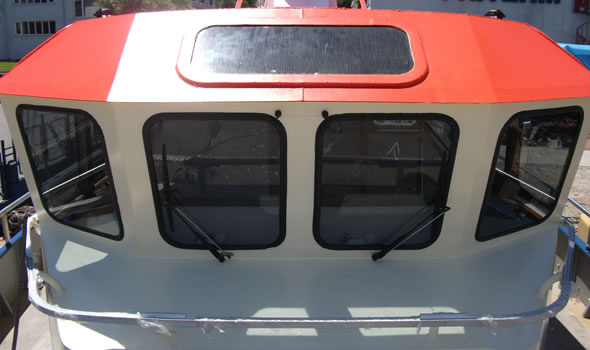

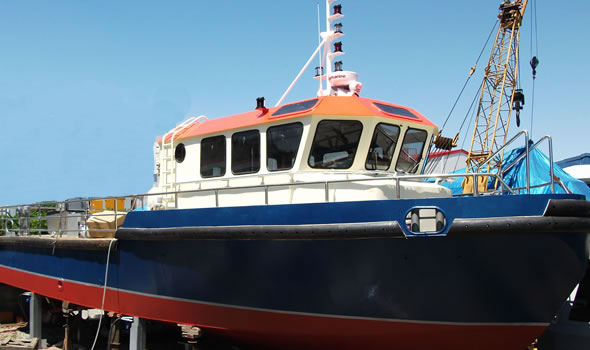

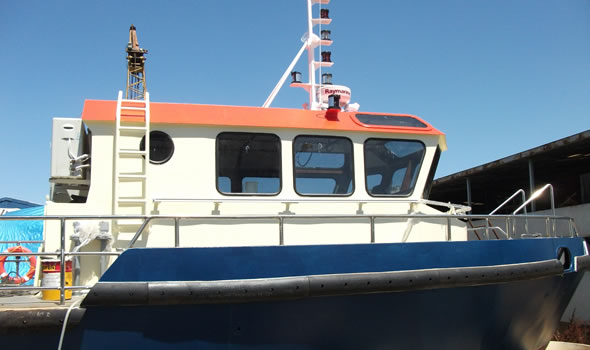

15M CREW BOAT
DIMENSIONS
Length OA: 14.95 m Beam OA: 5.00 m Depth at sides: 2.30 m Draught Aft: 1.00 m Displacement: 35 tons
TANK CAPACITIES
Fuel-Oil: 4.00 m3 Fresh Water: 2.50 m3 Bilge Water: 0.25 m3 Grey Water: 0.25 m3
PERFORMANCES
Speed: 18+ Knots
PROPULSION SYSTEM
Main Engines: 2X CUMMINS QSC 8.3 500 HP Total Power: 2X500 HP
Gear Boxes: ZF 280-1A RATIO 2:1 Propulsion: 2x Fixed Pitch Propellers
AUXILIARY EQUIPMENT
Main Generator: PERKINS 22KW THREE PHASE 50HZ Pumps: FIRE&GS&BILGE
DECK LAYOUT
Anchor: 1
Chain: 8MM
Anchor Windlass: DATA ELECTRIC 12V DZC401E CAP: 325KG
NAUTICAL AND COMMUNICATION EQUIPMENT
Search Lights: 1X REMOTE CONTROL Compass: 1
VHF: Raymarine Ray49E
GPS: Raymarine RS130
Echosounder: Raymarine I40 DEEP PACK Radar: Raymarine RD418D
REMARKS
6 PAX
2 CREW
DECK AREA 25m2

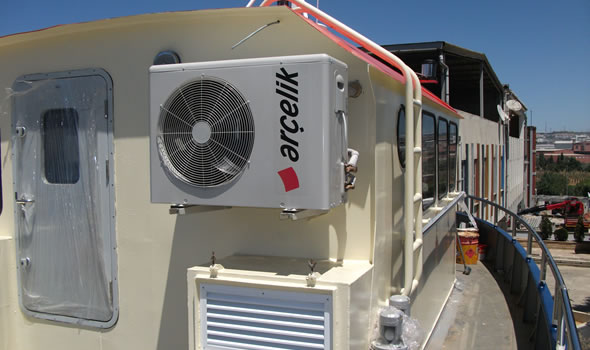

AIR CONDITION : WHEEL HOUSE 24000BTU AIR CONDITION : CABIN 9000BTU
It is the general arangement of previously produced boats, it can be changed according to your wishes.
Standart Main propulsion comprises a pair of Caterpillar C32 Diesel engines each rated 2 x 1000hp at 1800 rpm, and each driving fixed pitched 0.86 m diameter propellers on conventional shaft lines.
